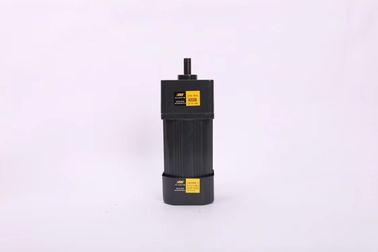

60W OPG Ac gear reduction motor 5ik60rgn

China 60W OPG Ac gear reduction motor 5ik60rgn supplier
60W OPG Ac gear reduction motor 5ik60rgn supplier 60W OPG Ac gear reduction motor 5ik60rgn supplier 60W OPG Ac gear reduction motor 5ik60rgn supplier

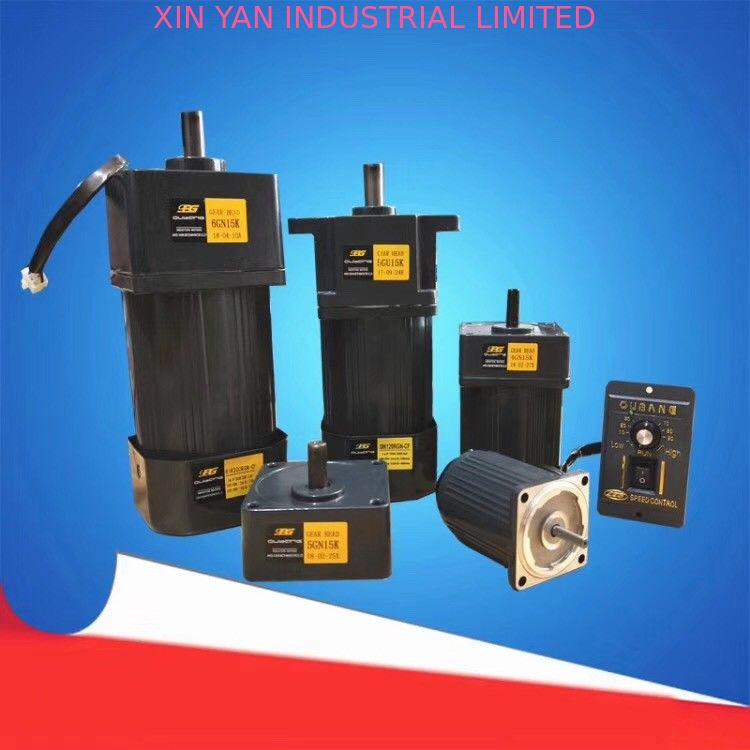

Large Image :  60W OPG Ac gear reduction motor 5ik60rgn

Product Details:

Place of Origin: China
Brand Name: OPG
Model Number: 5IK60RGN

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: OPG original package
Contact Now
Detailed Product Description
Output Power: : 60w Type:: Speed Control Motor
Voltage(V):: 100v, 220V, 230V Certificates: CCC, CE

60W OPG Ac gear reduction motor 5ik60rgn60W OPG Ac gear reduction motor 5ik60rgn60W OPG Ac gear reduction motor 5ik60rgn60W OPG Ac gear reduction motor 5ik60rgnFeature:

A. Wide range of ac and dc motor, easy for helping customer to find the motor you want
B. Manufacture of ac motor over 9 years,1 year warranty period with stable property
C. Competitive price based on same quality motors



odel
Lead Wire Type
Output Power Voltage Frequency Current

Starting

Torque

Allowace Torque

(N.m)

Speed Control Range Capacitor
Pinion Shaft Round Shaft W V HZ A mN.m 90r/minm 1200r/min r/min µF
5IK60RGN-AFJ 5IK60RA-AFJ 60 1ph100 50 1.2 265 140 460 90-1350 20
60 1.2 265 160 490 90-1700 20
5IK60RGN-CFE 5IK60RA-CFE 1ph220 50 0.6 265 140 490 90-1350 4
1ph230 50 0.6 265 140 490 90-1350 4



Note: Above are only some typical models. For more information or a customized motor, Pls contact us.



Dimensions (Unit: mm )

Mounting screws are included with gearhead

Lead Wire Type

Motor weight: 2.8kg Gearhead weight: 1.35kg

Gear ratio:3-18, L=42

Gear ratio:25-200, L=60





ALLOWABLE TORQUE BEING WITH GEARHEAD



indicates of the motor while the others rotate in the opposite direction.

The speed is calculated by dividing the motors synchronous speed(50Hz:1500r/min, 60Hz: 1800 r/min) by the gear ratio.

The actual speed is 2%-20% less than the displayed value, depending on the size of the load.

Allowance Torque Unit: Upside(N.m)/Below side(kgf.cm)







Key·Keyway(Accessory of Gearhead)



Shaft Section of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.



Decimal Gearhead

Can be connected to GN pinion shaft type

Weight:0.6KG





Wiring Diagram



ype Gear Motor
Dimension 60mm,70mm,80mm,90mm,104mm
Power 6W,15W,25W,40W,60W,90W,
120W,140W,180W,200W,250W
Voltage Single Phase 110V/220V
Three Phase 220V/380V
Gear ratio 3, 3.6, 5, 6, 7.5, 9, 12.5 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 150, 180,200 ~750
Shaft Type Parallel shaft
Using humidity ≤85%(Place without dew)
Using temperature -10℃~+40℃(No freeze)
Insulation class Class B (130℃)
Temperature rise The temperature rise should be lower than 80℃ measured
by resistance method when the motor is working.
Insulation voltage In the circumstance of normal temperature and humidity,
there will be no problem supplying the power of 1500V 50/60Hz between the metal wiring and motor shell in 1 minute while the motor is working.
Insulation resistance In the circumastance of normal temperature and humidity,
the resistance can be up to 100MΩ,measured by DC 500V
insulation resistance measurer between the motor wiring
and motor shell while the motor is working
Bearing Type Ball Bearing(Mark KB for Type GU square case)
Gear type(Gearbox) GU:General Helical Gear; GN:Reinforced Helical Gear
Shape of Motor Shaft A:Flat type; A1:Milling Keyway; GU:General Helical Gear;
GN:Reinforced Helical Gear
