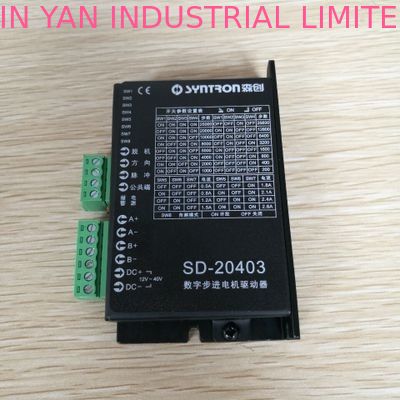

Good quality Syntron Two-phase Digital Stepper Motor Driver SD-20403

Good quality Syntron Two-phase Digital Stepper Motor Driver SD-20403,

Product Codes: 001700,Low Vibration ,Low Noise ,Low Power ..

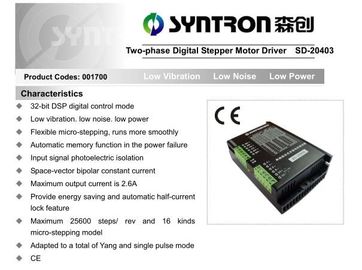

Characteristics

32-bit DSP digital control mode.
 Low vibration. low noise. low power.
 Flexible micro-stepping, runs more smoothly.
Automatic memory function in the power failure.
 Input signal photoelectric isolation.
 Space-vector bipolar constant current.
 Maximum output current is 2.6A.
 Provide energy saving and automatic half-current.
lock feature.
 Maximum 25600 steps/ rev and 16 kinds.
micro-stepping model.
 Adapted to a total of Yang and single pulse mode.
CE.

Electric Property (ambient temperature Tj＝25℃ )
Power Supply 12V~ 40VDC, capacity 0.1KVA
Output Current
Peak current is 2.6 A (Max) ( the output current can be set by panel dial
switch
Drive Mode Space-vector bipolar constant current
Exciting Type
200 steps/rev, 400 steps/rev, 800 steps/rev, 1000 steps/rev, 1600
steps/rev, 2000 steps/rev,
3200 steps/rev, 4000 steps/rev, 5000 steps/rev, 6400 steps/rev, 8000
steps/rev,
10000 steps/rev, 12800 steps/rev, 20000 steps/rev, 25000 steps/rev,
25600 steps/rev
Insulation Resistance At normal temperatures and pressures ＞100MΩ
Insulation Strength At normal temperatures and pressures 0.5KV,1Min
Ambient Temperature and parameters
Cooling Model
Natural convection ( the drive is installed in the metal surface with a
good thermal conductivity )
condition Avoid dust, oil mist and corrosive gases
Temperature -5℃~ +40℃
Humidity ＜80%RH, no condensation, no frosting
Ambient
Temperature
Vibration 5.9m/s 2 Max
? 32-bit DSP digital control mode
? Low vibration. low noise. low power
? Flexible micro-stepping, runs more smoothly
? Automatic memory function in the power failure
? Input signal photoelectric isolation
? Space-vector bipolar constant current
? Maximum output current is 2.6A
? Provide energy saving and automatic half-current
lock feature
? Maximum 25600 steps/ rev and 16 kinds
micro-stepping model
? Adapted to a total of Yang and single pulse mode
? CE
Characteristics
