ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Brand: | NORGREN | Temperature: | : -10* °C To 50 °C |
|---|---|---|---|
| Material: | Eat Seal: NBR (Perbunan) | Operating Pressure: | : 2 To 8 Bar |
| Actuation:: | Solenoid Operated, Indirectly Controlled |

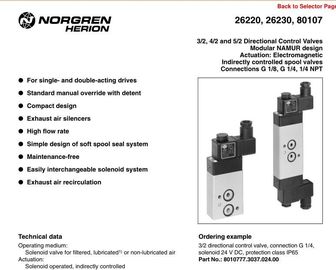

3/2, 4/2 and 5/2 Directional Control Valves Modular NAMUR design Actuation: Electromagnetic Indirectly controlled spool valves Connections G 1/8, G 1/4, 1/4 NPT.
● For single- and double-acting drives ● Standard manual override with detent ● Compact design ● Exhaust air silencers ● High flow rate ● Simple design of soft spool seal system ● Maintenance-free ● Easily interchangeable solenoid system ● Exhaust air recirculation
● For single- and double-acting drives
● Standard manual override with detent
● Compact design
● Exhaust air silencers
● High flow rate
● Simple design of soft spool seal system
● Maintenance-free
● Easily interchangeable solenoid system
● Exhaust air recirculation
Technical data Operating medium: Solenoid valve for filtered, lubricated1) or non-lubricated air.
Actuation: Solenoid operated, indirectly controlled Flow direction: Fixed Mounting position:
Optional, preferably with solenoid on top .
Nominal size: 4 and 6 .
Port size: G 1/8, G 1/4, 1/4 NPT.
Electrical connection: Connector interface to DIN 43650 form A and B .
Operating pressure: 2 to 8 bar .
Temperature: -10* °C to 50 °C *With minus temperatures, use conditioned dry air.
If installed in the open protect all connections against the penetration of moisture! Current draw: < 2 W standard .
Material: Housing: Aluminium Pilot flange: Plastic Seat seal: NBR (Perbunan
