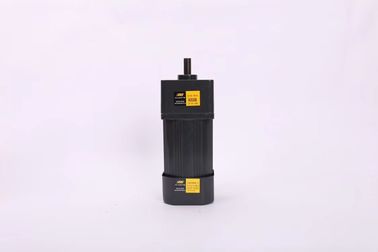

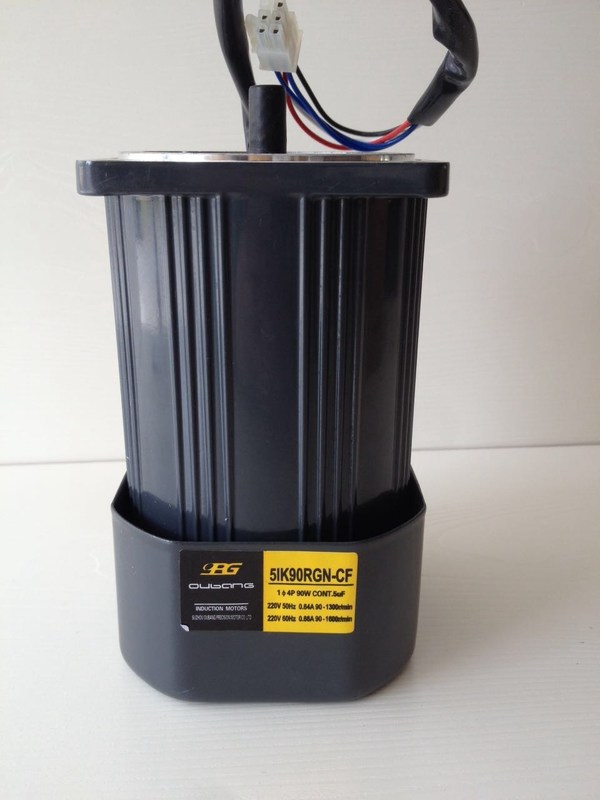

90W OPG Ac gear reduction motor 5ik90RGN
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Output Power: | 90w | Type:: | Speed Control Motor |
|---|---|---|---|
| Voltage(V):: | 100v, 220V, 230V | Certificates: | CCC, CE |
Feature:
A. Wide range of ac and dc motor, easy for helping customer to find the motor you want
B. Manufacture of ac motor over 9 years,1 year warranty period with stable property
C. Competitive price based on same quality motors
| odel Lead Wire Type |
Output Power | Voltage | Frequency | Current |
Starting Torque |
Allowace Torque (N.m) |
Speed Control Range | Capacitor | ||
| Pinion Shaft | Round Shaft | W | V | HZ | A | mN.m | 90r/minm | 1200r/min | r/min | µF |
| 5IK60RGN-AFJ | 5IK60RA-AFJ | 60 | 1ph100 | 50 | 1.2 | 265 | 140 | 460 | 90-1350 | 20 |
| 60 | 1.2 | 265 | 160 | 490 | 90-1700 | 20 | ||||
| 5IK60RGN-CFE | 5IK60RA-CFE | 1ph220 | 50 | 0.6 | 265 | 140 | 490 | 90-1350 | 4 | |
| 1ph230 | 50 | 0.6 | 265 | 140 | 490 | 90-1350 | 4 | |||
Note: Above are only some typical models. For more information or a customized motor, Pls contact us.
Dimensions (Unit: mm )
Mounting screws are included with gearhead
Lead Wire Type
Motor weight: 2.8kg Gearhead weight: 1.35kg
Gear ratio:3-18, L=42
Gear ratio:25-200, L=60
ALLOWABLE TORQUE BEING WITH GEARHEAD
indicates of the motor while the others rotate in the opposite direction.
The speed is calculated by dividing the motor’s synchronous speed(50Hz:1500r/min, 60Hz: 1800 r/min) by the gear ratio.
The actual speed is 2%-20% less than the displayed value, depending on the size of the load.
Allowance Torque Unit: Upside(N.m)/Below side(kgf.cm)
Key·Keyway(Accessory of Gearhead)
Shaft Section of Round Shaft Type
Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.
Decimal Gearhead
Can be connected to GN pinion shaft type
Weight:0.6KG
Wiring Diagram
| ype | Gear Motor |
| Dimension | 60mm,70mm,80mm,90mm,104mm |
| Power | 6W,15W,25W,40W,60W,90W, 120W,140W,180W,200W,250W |
| Voltage | Single Phase 110V/220V Three Phase 220V/380V |
| Gear ratio | 3, 3.6, 5, 6, 7.5, 9, 12.5 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 150, 180,200 ~750 |
| Shaft Type | Parallel shaft |
| Using humidity | ≤85%(Place without dew) |
| Using temperature | -10℃~+40℃(No freeze) |
| Insulation class | Class B (130℃) |
| Temperature rise | The temperature rise should be lower than 80℃ measured by resistance method when the motor is working. |
| Insulation voltage | In the circumstance of normal temperature and humidity, there will be no problem supplying the power of 1500V 50/60Hz between the metal wiring and motor shell in 1 minute while the motor is working. |
| Insulation resistance | In the circumastance of normal temperature and humidity, the resistance can be up to 100MΩ,measured by DC 500V insulation resistance measurer between the motor wiring and motor shell while the motor is working |
| Bearing Type | Ball Bearing(Mark KB for Type GU square case) |
| Gear type(Gearbox) | GU:General Helical Gear; GN:Reinforced Helical Gear |
| Shape of Motor Shaft | A:Flat type; A1:Milling Keyway; GU:General Helical Gear; GN:Reinforced Helical Gear |
