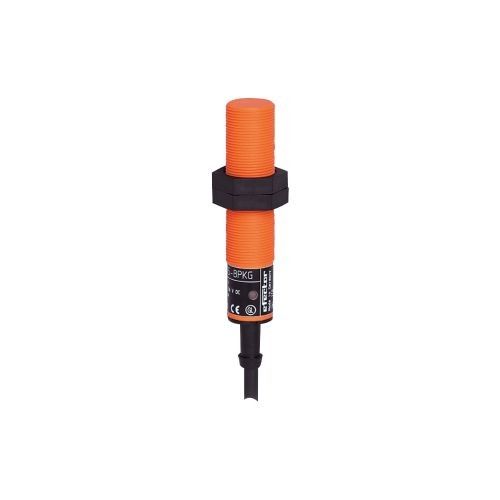

IFM Inductive sensor IG0006 ,IG-2008-ABOA
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Output Function: | Normally Open | Housing: | Threaded Type |
|---|---|---|---|
| Operating Voltage [V]: | 20...250 AC/DC |
- With combined AC/DC output stage
- Large operating voltage range
- Two-wire technology
- Wide operating temperature range
- High protection rating for the requirements of harsh industrial environments
-
Product characteristics Output function normally open Sensing range [mm] 8 Housing threaded type Dimensions [mm] M18 x 1 / L = 80 Electrical data Operating voltage [V] 20...250 AC/DC Protection class II Reverse polarity protection no Outputs Output function normally open Max. voltage drop switching output DC [V] 6 Max. voltage drop switching output AC [V] 6.5 Minimum load current [mA] 5 Max. leakage current [mA] 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) Permanent current rating of switching output AC [mA] 250; (350 (...50 °C)) Permanent current rating of switching output DC [mA] 100 Short-time current rating of switching output [mA] 2200; (20 ms / 0,5 Hz) Switching frequency AC [Hz] 25 Switching frequency DC [Hz] 50 Short-circuit proof no Overload protection no Detection zone Sensing range [mm] 8 Real sensing range Sr [mm] 8 ± 10 % Operating distance [mm] 0...6.5 Accuracy / deviations Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 Hysteresis [% of Sr] 1...15 Switch point drift [% of Sr] -10...10 Operating conditions Ambient temperature [°C] -25...80 Protection IP 67 Tests / approvals EMC MTTF [years] 604 UL approval Mechanical data Weight [g] 68 Housing threaded type Mounting non-flush mountable Dimensions [mm] M18 x 1 / L = 80 Thread designation M18 x 1 Materials PBT Displays / operating elements Display Electrical connection Required protection miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting Accessories Items supplied Remarks Remarks Pack quantity 1 pcs.
