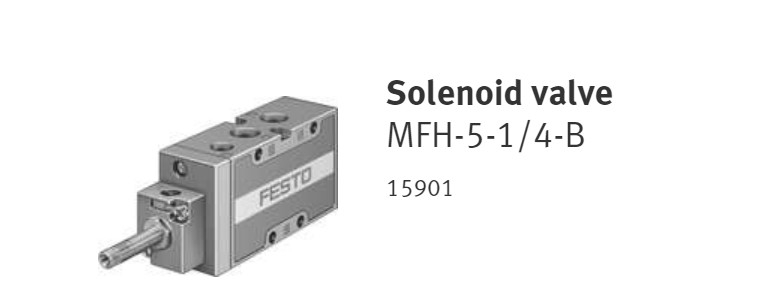

Solenoid valve MFH-5-1/4-B 15901
|
Detailed Product Description
- Valve function5/2-way, monostable
- Type of actuationElectric
- Construction width32 mm
- Standard nominal flow rate1300 l/min
- pneumatic working portG1/4
- Operating pressure0.2 MPa ... 1 MPa
- Operating pressure2 bar ... 10 bar
- DesignPoppet seat
- Type of resetMechanical spring
- Nominal size7 mm
- Grid dimension33 mm
- Exhaust-air functionWith flow control option
- Sealing principleSoft
- Mounting positionoptional
- Manual overrideNon-detenting
- Type of pilotingPilot actuated
- Pilot air supplyInternal
- Flow directionNon-reversible
- Symbol00991035
- lapUnderlap
- b value0.29
- C value5.5 l/sbar
- Max. switching frequency3 Hz
- Switching time off36 ms
- Switching time on12 ms
- Max. positive test pulse with 0 signal2200 µs
- Max. negative test pulse with 1 signal3700 µs
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC1 - Low corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Storage temperature-40 °C ... 60 °C
- Media temperature-10 °C ... 60 °C
- Ambient temperature-5 °C ... 40 °C
- Product weight300 g
- Electrical connectionVia F coil, to be ordered separately
- Type of mountingEither: On PR rail With through-hole
- Pilot exhaust port 84M5
- Pneumatic connection, port 1G1/4
- Pneumatic connection, port 2G1/4
- Pneumatic connection, port 3G1/4
- Pneumatic connection, port 4G1/4
- Pneumatic connection, port 5G1/4
- Note on materialsRoHS-compliant
- Material sealsNBR TPE-U(PU)
- Material housingDie-cast aluminium
