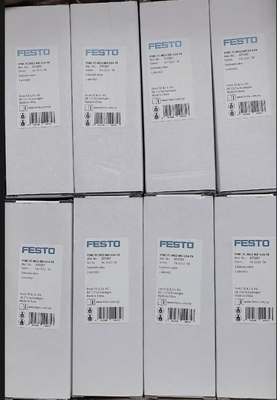

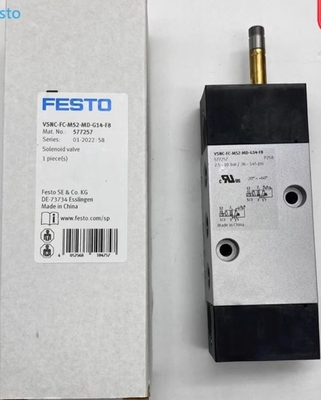

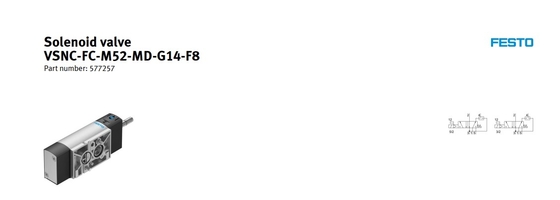

NEW original 5/2-way or 3/2-way Solenoid valve VSNC-FC-M52-MD-G14-F8 577257

Valve function
5/2-way or 3/2-way, convertible
Type of actuation
Electric
Construction width
32 mm
Standard nominal flow rate
1250 l/min
pneumatic working port
NAMUR port pattern
Operating voltage
Via solenoid coil, must be ordered separately
Operating pressure
0.25 MPa ... 1 MPa
Operating pressure
2.5 bar ... 10 bar
Design
Piston gate valve
Type of reset
Mechanical spring
Approval
c UL us - Recognized (OL)
Certificate issuing authority
DNVGL-TAA000011J
Exhaust-air function
With flow control option
Sealing principle
Soft
Mounting position
optional
Conforms to standard
VDI/VDE 3845 (NAMUR)
Manual override
Detenting
Non-detenting
Type of piloting
Pilot actuated
Pilot air supply
Internal
Flow direction
Non-reversible
Symbol
00991831
lap
Positive overlap
Signal status display
With accessories
b value
0.4
C value
5.2 l/sbar
Standard nominal flow rate, exhaust return 4->3
110 l/min
Switching time off
48 ms
Switching time on
11 ms
Duty cycle
100%
Characteristic coil data
See solenoid coil, to be ordered separately
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B2-L
Media temperature
-20 °C ... 60 °C
Ambient temperature
-20 °C ... 60 °C
Product weight
335 g
Type of mounting
With through-hole
Breather connection
Not ducted
Pneumatic connection, port 1
G1/4
Pneumatic connection, port 2
NAMUR port pattern
Pneumatic connection, port 3
G1/4
Pneumatic connection, port 4
NAMUR port pattern
Pneumatic connection, port 5
G1/4
Note on materials
RoHS-compliant
Material seals
NBR
Material housing
Wrought aluminium alloy
Material screws
Galvanised steel
