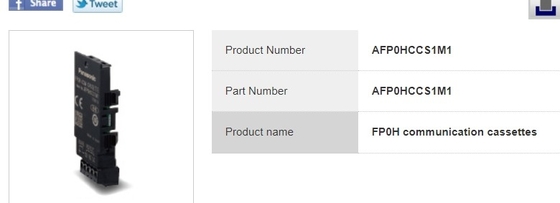

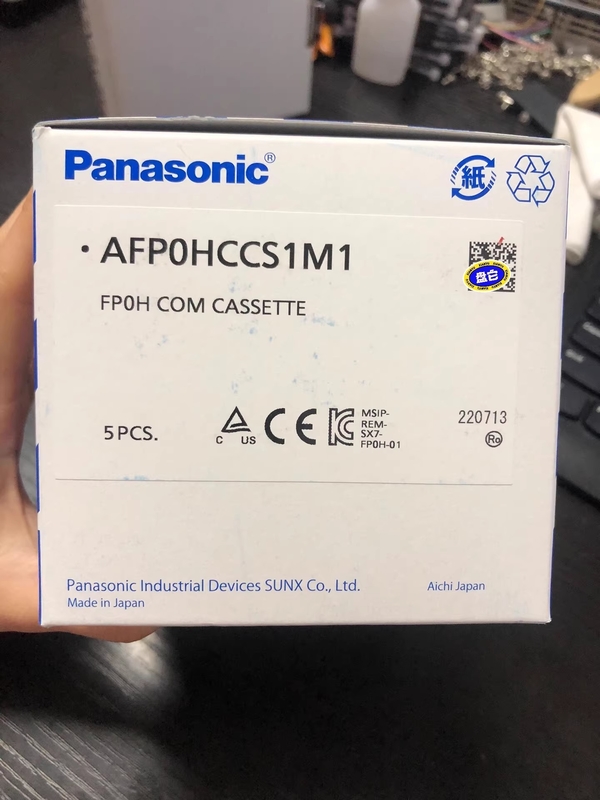

Panasonic AFP0HCCS1M1 AFP0HCCS1M1 | FP0H communication cassettes
Detailed Product Description
Spec Detail
| Item | Specifications |
|---|---|
| Product Number | AFP0HCCS1M1 |
| Part Number | AFP0HCCS1M1 |
| Interface | RS-232C 1 channel and RS-485 1 channel |
| Transmission distance | [RS-232C] Max.15 m 49.213 ft [RS-485] Max. 1,200 m 3,937.008 ft |
| Communication configuration | [RS-232C] 1 : 1 communication [RS-485] 1 : N communication |
| Communication speed | 1,200(Note), 2,400(Note), 4,800, 9,600, 19,200, 38,400, 57,600, 115,200, 230,400 bits/sec. (Note): System register no. 415 cannot be used to set the baud rate to 1,200 bps. To set the baud rate to 1,200 bps, use the SYS1 instruction. If the baud rate of any of the COM ports is 2,400 bps or lower, F-ROM access will slow down. Example) F12(ICRD) instruction, P13(ICWT) instruction, etc. |
| Communication method | Half-duplex system |
| Synchronous method | Start-stop synchronization system |
| Transmission format : Data length | 7 bits / 8 bits |
| Transmission format : Parity | none / odd / even |
| Transmission format : Stop bit | 1 bit / 2 bits |
| Transmission format : Start code | with STX / without STX |
| Transmission format : End code | CR / CR + LF / none / ETX / Time (0 to 100 ms) |
| Data transmission order | Transmit from bit 0 in character units. |
| Number of stations | [RS-232C] - [RS-485] Max. 99 units |
| Net weight | 10 g approx. |
