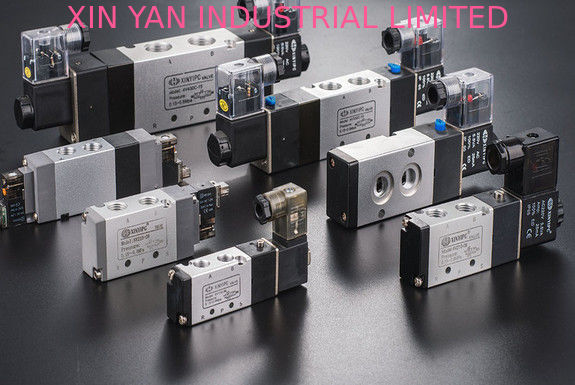

4V310 Series Widely Used Solenoid Valve Pneumatic Control Valve
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

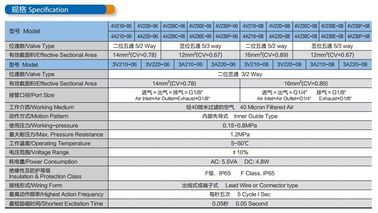

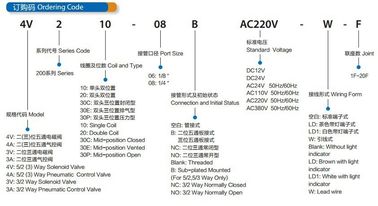

Model: 4V210-06; 4V220-06; 4V230C-06;4V230E-06; 4V230P-06
4V210-08; 4V220-08; 4V230C-08;4V230E-08; 4V230P-08
4A210-06; 4A220-06; 4A230C-06;4A230E-06; 4A230P-06
4A210-08; 4A220-08; 4VA230C-08;4A230E-08; 4A230P-08
3V210-06;3V220-06;3A210-06; 3A220-06;3V210-08; ;3V220-08;3A210-08; 3A220-08
Port size: G1/8"; G 1/4"
Position and way No. 5/2 Way ; 3/2 way; 5/3 way
Standard Voltage: DC12V; DC24V; AC24V; AC110V;AC220V;AC380V
Connection and initial status: Threaded; sub-plated mounted(for 5/2way, 5/3 way only)
NC 3/2 way normally colsed ; 3/2 way normally open
Coil and type: 10 Single coil; 20 Doulbe coil; 30c Mid-position closed; 30E Mid-Position exhause
30P Mid-position pressure
