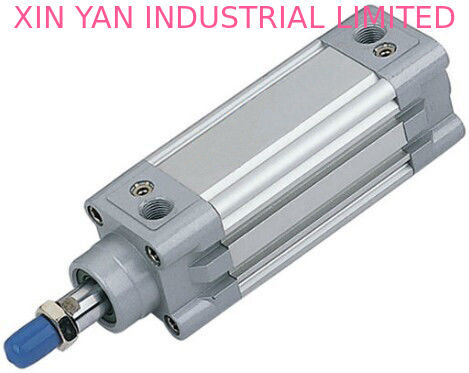

ISO6431 DNC Pneumatic Cylinders
|
Detailed Product Description
•Application of new seal material and buffer structure
•Low start pressure
•Stable operation
•Fine tightness
Long service life
Energy conservation and environmental protection, can recycle
•Beautiful appearance
•Widely used in automatic devices, e.g. light industry, chemical industry, textile, electron,machinery, etc
|
DNC |
63 |
50 |
PPV |
A |
O |
S2 |
|
| Model DNC: Fixed Type DNCF: With Buffer Type PNC: Micky Mouse Barrel |
| Bore |
| Stroke |
| Buffer Blank: Non Buffer PPV: Attach Buffer |
| Magnet Code Blank: Standard Type A: Inside Magnet |
| Fixed Type Blank:Basic Type LB: Front and Back Fixed Type FA: Front Cover Fixed Type SDB: Back Cover Swinging Type |
|
S2:Double Piston Rod K2: Lengthen Out Screw K3:Front in Screw Thread K5:Out Standard Screw Thread K8:Lengthen Riston Rod |
|
Bore ( mm ) |
32 |
40 |
50 |
63 |
80 |
100 |
|
Motion Pattern |
Filtered Air |
|||||
|
Working Medium |
Double Action |
|||||
|
Compression Pressure |
1.5MPa |
|||||
|
Max.Operating Pressure |
1.0MPa |
|||||
|
Min.Operating Pressure |
0.1MPa |
|||||
|
Buffer |
Air Buffer ( Standard ) |
|||||
|
Ambient Temperature |
5~60℃ |
|||||
|
Operating Speed |
50~500mm/s |
|||||
|
Margin of Stroke Error (mm) |
0~250+1.0 251~1000 +1.5 1001~1500 +2.0 |
|||||
|
Operating Life |
Not Less Than 4000Km |
|||||
|
Lubricate |
Not Necessary |
|||||
|
Port Size |
1/8” |
1/4” |
3/8” |
1/2” |
||
