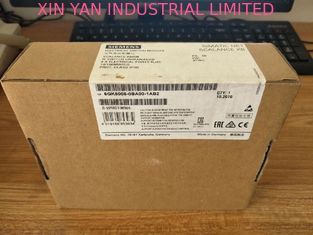

good quality in stock New and original SIEMENS 6GK5008-0BA00-1AB2 ETHERNET SWITCH，fast delivery discount cheap price
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Transfer Rate: | 10 Mbit/s, 100 Mbit/s | Type Of Voltage / Of The Supply Voltage: | DC |
|---|---|---|---|
| Certificate Of Suitability: | EN 61000-6-2, EN 61000-6-4 |
6GK5008-0BA00-1AB2
SCALANCE XB008
SCALANCE XB008 UNMANAGED INDUSTRIAL ETHERNET SWITCH FOR 10/100MBIT/S; WITH 8 X 10/100MBIT/S TWISTED PAIR- PORTS WITH RJ45-SOCKETS; FOR CONFIGURING SMALL STAR- AND LINE TOPOGRAPHIES; LED-DIAGNOSIS, IP20, 24 V DC POWER SUPPLY,
Technical data
| SCALANCE XB008 UNMANAGED INDUSTRIAL ETHERNET SWITCH FOR 10/100MBIT/S; WITH 8 X 10/100MBIT/S TWISTED PAIR- PORTS WITH RJ45-SOCKETS; FOR CONFIGURING SMALL STAR- AND LINE TOPOGRAPHIES; LED-DIAGNOSIS, IP20, 24 V DC POWER SUPPLY, MANUAL AVAILABLE AS DOWNLOAD | ||
| Transmission rate | ||
| Transfer rate | 10 Mbit/s, 100 Mbit/s | |
| Interfaces / for communication / integrated | ||
| Number of electrical connections | ||
| ● for network components or terminal equipment | 8; RJ45 | |
| Number of 100 Mbit/s SC ports | ||
| ● for multimode | 0 | |
| Number of 1000 Mbit/s LC ports | ||
| ● for multimode | 0 | |
| ● for single mode (LD) | 0 | |
| Interfaces / others | ||
| Number of electrical connections | ||
| ● for power supply | 1 | |
| Type of electrical connection | ||
| ● for power supply | 3-pole terminal block | |
| Supply voltage, current consumption, power loss | ||
| Type of voltage / of the supply voltage | DC | |
| Supply voltage | ||
| ● external | 24 V | |
| ● external / minimum | 19.2 V | |
| ● external / maximum | 28.8 V | |
| Product component / fusing at power supply input | Yes | |
| Fuse protection type / at input for supply voltage | 0.6 A / 60 V | |
| Consumed current / maximum | 0.12 A | |
| Power loss [W] | ||
| ● at DC / at 24 V | 2.88 W | |
| Permitted ambient conditions | ||
| Ambient temperature | ||
| ● during operation | -10 ... +60 °C | |
| ● during storage | -40 ... +80 °C | |
| ● during transport | -40 ... +80 °C | |
| Relative humidity | ||
| ● at 25 °C / without condensation / during operation / maximum | 95 % | |
| Protection class IP | IP20 | |
| Design, dimensions and weight | ||
| Design | Box | |
| Width | 45 mm | |
| Height | 100 mm | |
| Depth | 87 mm | |
| Net weight | 0.18 kg | |
| Mounting type | ||
| ● 35 mm DIN rail mounting | Yes | |
| ● wall mounting | Yes | |
| ● S7-1500 rail mounting | No | |
| Product functions / management, configuration | ||
| Product function | ||
| ● multiport mirroring | No | |
| ● CoS | Yes | |
| ● switch-managed | No | |
| Product functions / Redundancy | ||
| Product function | ||
| ● Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes | |
| ● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No | |
| Standards, specifications, approvals | ||
| Standard | ||
| ● for FM | FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4 | |
| ● for hazardous zone | EN 60079-0:2009, EN60079-15:2010, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X | |
| ● for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 | |
| ● for emitted interference | EN 61000-6-4 (Class A) | |
| ● for interference immunity | EN 61000-6-2 | |
| Standards, specifications, approvals / CE | ||
| Certificate of suitability / CE marking | Yes | |
| Standards, specifications, approvals / miscellaneous | ||
| Certificate of suitability | EN 61000-6-2, EN 61000-6-4 | |
| ● C-Tick | Yes | |
| ● KC approval | Yes | |
| Standards, specifications, approvals / product conformity | ||
| MTBF / at 40 °C | 214 y | |
| Accessories | ||
| Further Information / Internet Links | ||
| Internet-Link | ||
| ● | ||
| Security information | ||
| Se | ||
| last modified: | 09/20/2017 | |
